DIY Model Robot Hand STEM Activity

This post contains Amazon affiliate links. As an Amazon Associate I earn from qualifying purchases.

Late afternoon light rests across the work table, and the cardboard pieces feel light, dry, and a little rough beneath your fingers. As you sort the straws, string, and small fasteners for the DIY Model Robot Hand STEM Activity, the project begins to feel less like a lesson and more like a quiet puzzle. Each finger will bend when you pull its cord, using a simple mechanical idea that you can see and touch. You do not need a perfect first try. A little crookedness belongs here, especially when the hand starts to move and suddenly feels alive.

Why Make This DIY Model Robot Hand STEM Activity

This project gives your hands something steady to do while your mind follows a clear sequence. You measure, cut, thread, tie, and test. The work has a gentle rhythm, but it also gives you a small engineering problem to solve: how can a pull at the wrist make five cardboard fingers curl?

The answer comes from flexible joints and tension. Each finger uses short straw sections as guides, while a cord runs through them. When you pull the cord, the finger bends at the spaces between the straw pieces. You can see the movement happen instead of only reading about it, which makes the STEM idea feel friendly and real.

I like projects that leave a little room for adjustment. The first finger I built did not curl smoothly because I placed one straw section too close to the knuckle. Moving it a little lower changed everything. That small repair felt useful rather than frustrating, and it reminded me that testing belongs in the making.

Many people find this kind of focused handwork calming because the next action stays close at hand. You are not trying to fill a whole afternoon. You are giving yourself a quiet hour at the kitchen table, perhaps with a mug nearby and the house still settling into the day.

The finished hand also invites curiosity from other people. Set it on a desk, and someone will usually pull a cord to see what happens. For a child, it offers a simple introduction to joints, force, and motion. For you, it offers the pleasure of making a working object from ordinary supplies.

How This DIY Comes Together

The main technique is a cardboard linkage with cord-controlled fingers. Cardboard forms the palm and finger shapes, straw pieces act as low-friction guides, and embroidery cord carries the pulling force. This combination suits the project because every part stays visible, light, and easy to adjust.

You will cut one palm, five fingers, and a small wrist support. Then you will attach three straw guides to each finger and thread one cord through each guide. The quiet work comes in the spacing. If the guides line up, the cord slides cleanly and the finger curls in a natural arc.

Plan on 45 to 60 minutes of active time. Allow 30 minutes for glue to set before careful testing, although a full 2 hours gives the joints more security. If you use liquid craft glue instead of hot glue, let the finished hand dry overnight before repeated movement.

The materials make a soft clicking sound as the straw pieces meet the table. Cardboard feels warm and papery after you handle it for a while, and the cord gives a little resistance as you test each finger. Nothing needs to look polished before it works.

Materials You Will Need

• 1 piece of corrugated cardboard, 12 inches by 18 inches, for the palm and five fingers
• 5 flexible drinking straws, each 8 inches long, for finger guides
• 5 pieces of smooth cotton or nylon cord, each 24 inches long, one for each finger
• 5 small pony beads, 1/4 inch to 3/8 inch wide, for cord handles
• 1 wooden craft stick, 4.5 inches long, for the wrist support
• 1 small cardboard rectangle, 2 inches by 3 inches, for the back wrist brace
• 1 bottle of white craft glue, 4 fluid ounces, or 12 glue sticks for a low-temperature glue gun
• 1 pair of sharp scissors, for cutting cardboard and straws
• 1 pencil, for tracing and marking
• 1 ruler, at least 12 inches long, for straight measurements
• 1 small hole punch, 1/8 inch or 1/4 inch, for cord openings
• 1 low-temperature glue gun, optional, for faster assembly
• 1 self-healing cutting mat or 1 thick piece of scrap cardboard, for protecting the table
• 1 pair of safety glasses, for cutting and punching
• 1 pair of adult-size work gloves, optional, for rough cardboard edges

You can substitute paper straws for plastic straws if you prefer a lower-waste version, but paper straws may soften after repeated handling. A narrow piece of flexible tubing can work too. If you do not have a hole punch, use the tip of a pencil to make small openings, then widen them gently.

Look around the house before buying anything. A shipping box can replace new cardboard, clean package string can replace craft cord, and beads from an old bracelet can become the handles. A wooden coffee stirrer or a clean paint-stirring stick can replace the craft stick if it fits comfortably behind the wrist.

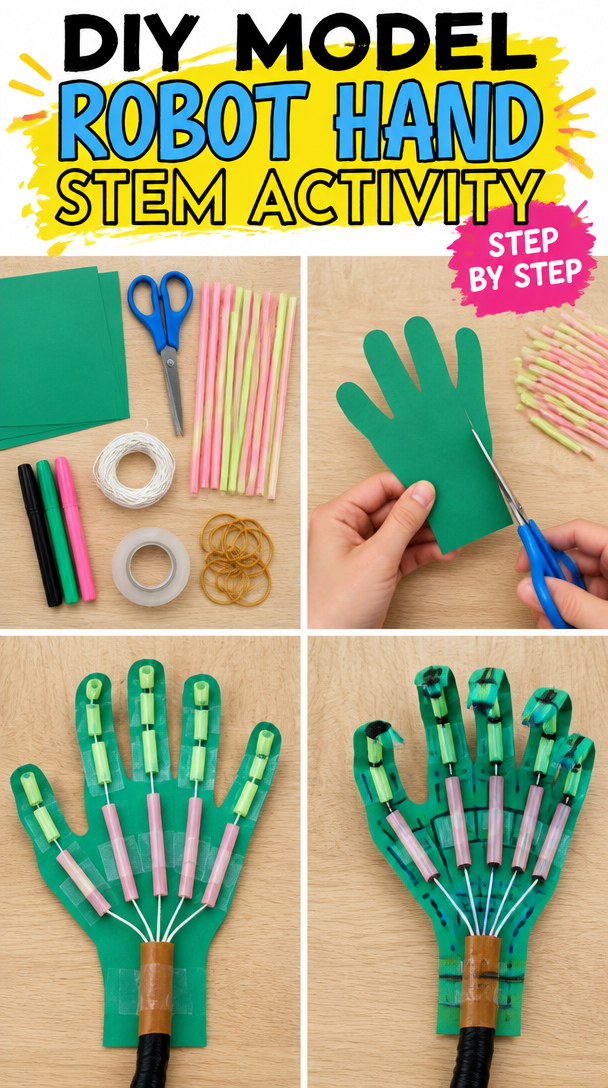

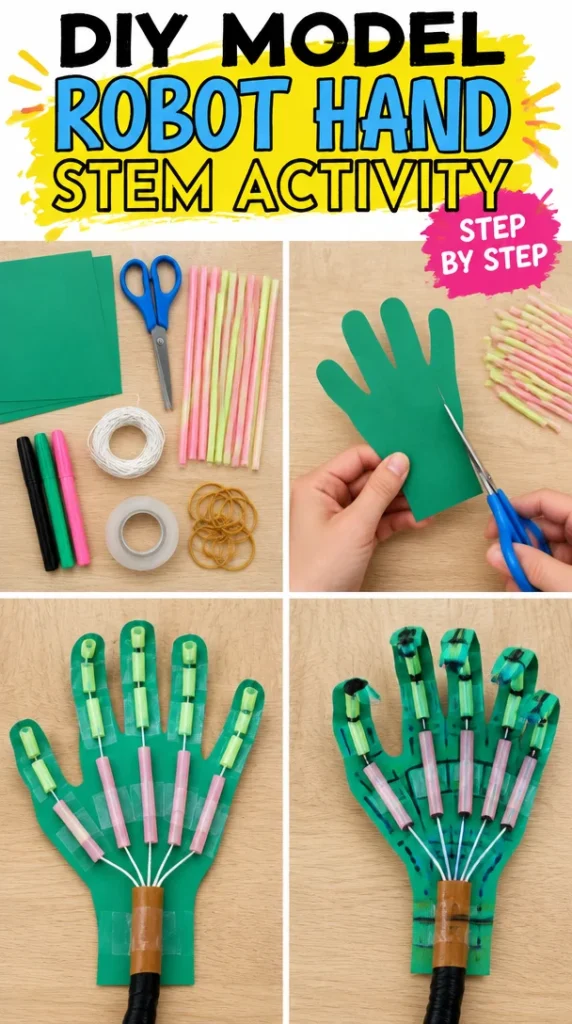

Step by Step

Difficulty: easy intermediate. Cover the table first with a cutting mat or thick scrap cardboard. This small bit of preparation keeps pencil marks, glue, and cardboard dust from taking over the whole evening.

1. Draw the palm and fingers. Trace a palm shape about 5 inches wide and 6 inches tall onto the cardboard. Draw five fingers, each 1 inch wide, with lengths of 3.5 inches for the index finger, 4 inches for the middle finger, 3.75 inches for the ring finger, 3 inches for the pinky, and 3.25 inches for the thumb.
2. Cut the cardboard pieces. Cut around the palm and each finger with steady scissor strokes. Keep the edges simple rather than trying to create a realistic hand. A blocky shape makes a stronger model and gives you more room for the straw guides.
3. Mark the finger joints. On each finger, mark three lines across the width. Place the first line about 1 inch from the fingertip, the second 1 inch below that, and the third 1 inch below the second when the finger is long enough. These marks show where the straw guides will sit.
4. Cut the straw guides. Cut fifteen straw sections, each 3/4 inch long. You will use three sections on every finger. Short sections leave open spaces between them, and those spaces let the cardboard bend instead of forcing the whole finger to fold at once.
5. Attach the guides. Place one straw section across each marked joint and secure both ends with a small amount of glue. Keep the straw opening clear. Hot glue holds light materials well, but it can fail when you use too much or place the piece under strong tension, so use only enough to keep each guide still.
6. Make the cord holes. Punch one small hole near the fingertip of every finger. Thread one 24 inch cord through the three straw guides, beginning at the fingertip and moving toward the palm. Leave about 4 inches outside the fingertip so you can tie on a bead later.
7. Attach the fingers to the palm. Arrange the fingers across the top of the palm with a small gap between each one. Glue the lower end of each finger to the palm, keeping the cord free to travel toward the wrist. Let the glue cool or set before pulling the cords.
8. Add the wrist brace. Place the 2 inch by 3 inch cardboard rectangle behind the lower palm and glue the 4.5 inch craft stick across it as a handle. The brace keeps the palm from bending while you pull. Hold it in place for a minute, then allow the assembly to rest.
9. Route and tie the cords. Guide all five cords down toward the wrist, keeping them separate. Tie a pony bead to each cord end. The beads give your fingers an easy grip and stop the cords from slipping back through the holes.
10. Test one finger at a time. Hold the wrist stick in one hand and pull a bead gently with the other. The finger should curl toward the palm. If it catches, check for a blocked straw opening, a tight knot, or a guide that sits slightly crooked.
11. Fix uneven movement without starting over. An uneven first attempt is normal. If one finger bends sharply, loosen the cord and move the nearest guide with a little fresh glue. If a finger feels too stiff, trim a tiny amount from its sides or replace one thick glue blob with a thinner attachment.
12. Secure and finish the hand. Once all five fingers move, add a small dab of glue beside each cord knot on the back of the palm. Do not glue the cords themselves to the straw guides. Let the hand rest for 30 minutes before gentle testing, or let white craft glue dry overnight for the strongest hold.

Safety Notes

Children can help with tracing, threading, and testing, but an adult should handle scissors, the hole punch, and any glue gun. A low-temperature glue gun can still burn skin, so work over a heat-safe surface and keep the cord away from the hot nozzle.

Wear safety glasses when punching holes and keep scissors pointed away from your body. Cardboard edges can feel surprisingly sharp, so smooth rough corners with your fingers or cover them with a small piece of tape.

Keep scraps and glue away from small children and pets. Dispose of dried glue and cardboard in regular household waste, and never pour liquid glue or cleaning products down the drain.

Using DIY Model Robot Hand STEM Activity in Everyday Life

The finished hand works best as a small desk model, a science-night demonstration, or a quiet object for a reading nook. Place it on a shelf beside books, on a craft-room table, or near the entryway where guests can gently test the cords.

For a classroom or family activity, invite each person to pull one cord and describe what changes. You can ask which finger moves first, how the spacing affects the bend, and what happens when you pull slowly instead of quickly. Those observations turn the model into a conversation without making it feel like a test.

You could give the hand as a handmade birthday gift to a curious child or wrap it in a shallow recycled box for a holiday science present. Add a small card that says, “Pull gently and watch the fingers curl.” That simple instruction makes the gift feel welcoming.

Keep it away from rain, damp windowsills, and unprotected outdoor spaces. Cardboard softens with water, and direct summer sun can fade the surface and make some plastic straws brittle over time.

Making This DIY Last

Dust the finished hand with a dry, soft cloth or a clean makeup brush. Do not rinse it or wipe it with a wet sponge, because moisture can swell the cardboard and loosen the glue. If a cord gathers lint, pull it gently through a folded dry cloth.

With careful indoor use, the model can last for several months or longer. The cords may fray first, especially if someone pulls the beads sharply. You can replace a worn cord by threading a new 24 inch piece through the same straw guides and tying on the original bead.

Store the hand flat in a lidded box between seasons. Place a sheet of tissue paper around the fingers so the cords do not catch on other objects. Avoid stacking heavy items on top, since cardboard slowly keeps the shape of pressure.

Keep unused craft glue sealed tightly at room temperature, and store straws, cord, and beads in separate small containers. If you used a glue gun, unplug it after use and let it cool fully before putting it away.

Small Ways to Make It Your Own

Try a different cardboard color if you find a clean shipping box with a printed inside. You can leave the surface plain for a warm paper texture, paint it with two thin coats of acrylic paint, or add simple joint marks with a fine marker. Two thin coats cover more evenly than one thick coat because thick paint can crack as it dries.

Make a smaller hand from a 9 inch by 12 inch piece of cardboard if you want a compact desk toy. Shorter fingers take less cord and feel quicker to operate, while a larger hand makes the bending action easier to see from across a room.

Swap the pony beads for wooden beads, large buttons, or short pieces of cork. A reclaimed button gives each finger a different little handle, and the variation can make the model feel more personal without adding much work.

For fall, use kraft cardboard with rust, mustard, and deep green marker details. For the holidays, add a narrow paper cuff around the wrist and use red or forest-green cords. Keep decorations light so they do not interfere with the finger movement.

If you give the hand as a gift, wrap it in tissue paper inside a recycled shoebox. Include five short notes explaining that each cord controls one finger, which makes the package feel thoughtful without requiring extra decoration.

FAQs About DIY Model Robot Hand STEM Activity

Is this DIY Model Robot Hand STEM Activity suitable for a complete beginner?

Yes, this project suits a complete beginner who can measure, cut cardboard, and tie simple knots. The fiddliest part involves threading the cords through the straw guides, but you can work on one finger at a time. Expect the first test to look a little uneven, then adjust the guide spacing or cord tension before adding more decoration.

What can I use instead of drinking straws?

You can use short pieces of flexible tubing, empty pen barrels, or tightly rolled paper tubes instead of drinking straws. The replacement needs a smooth inside opening wide enough for the cord to slide through. Avoid rough or narrow pieces, because they create friction and make the fingers feel stiff.

How long does the robot hand take to dry?

Hot glue usually cools enough for light testing within 30 minutes, but the hand feels more secure after 2 hours. White craft glue needs to dry overnight before repeated movement. Active work takes about 45 to 60 minutes, while the waiting time depends on the adhesive and the thickness of each glue spot.

What should I do if the fingers bend unevenly?

Check the straw guides first, because one crooked guide can change the whole pull. Loosen the cord, clear any glue from the opening, and move the guide slightly if needed. If the cardboard cracks, reinforce the back with a small patch of cardboard. A little unevenness does not hurt the model’s purpose.

Can kids help make this robot hand?

Children around age 8 and older can help with tracing, threading, tying beads, and testing when an adult stays nearby. Younger children can pull the finished cords with supervision. Adults should handle sharp scissors, hole punches, and glue guns, and everyone should wash hands after working with dusty cardboard or adhesive.

A Gentle Note Before You Go

Let the hand stay a little handmade. The slightly varied fingers, visible glue marks, and first imperfect pull all show that you gave the object your attention. Set it somewhere you will notice it, return to the cords when you have a quiet minute, and trust that careful making can be useful even when it asks you to slow down.
